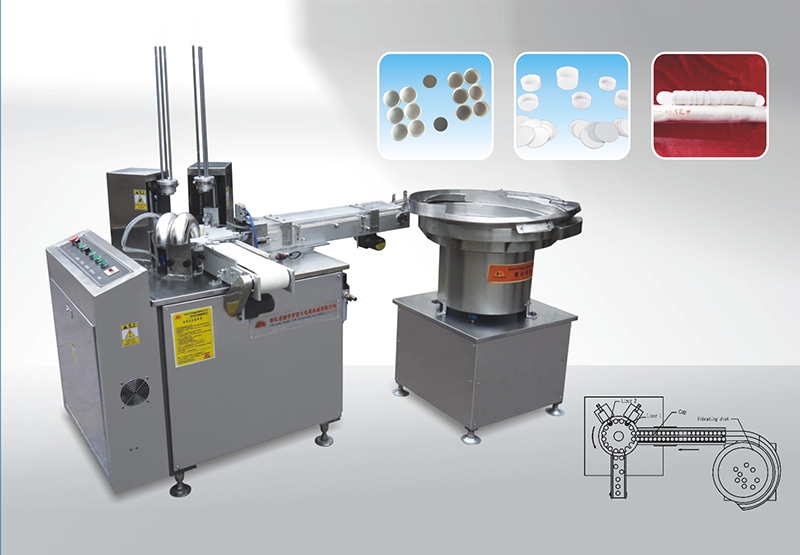

FURI FRT SD3 B Cap Lining Machine
Automatic FRT SD3 B cap lining machine at 100–160 pcs/min with rotary-disc feeding and auto liner inspection.
- Cap Size: Φ20-50 mm
- Capacity: 100-160pcs/Min
- Power Voltage: 220 V, single phase, 50-60Hz
- Power: 1.5KW
- Weight: 450KGS
- Air: 0.6-0.8 Mpa
Advantages & Features
High-Speed Liner Inserting
Automatic cap liner inserting replaces manual work, substantially raising work efficiency with accuracy and speed.
Rotary Disc Feeding
Rotary disc conveys caps and fixes positions; vacuum liner taking device inserts liners; tooling changes are simple and convenient.
Cap Sifting & Orientation
Vibrating disk with cap sifting returns mouth-down caps, guaranteeing all discharged caps are mouth-up.
Detection & GMP Compliance
Automatically detects missing or reversed liners and sifts nonconforming caps; GMP-standard hygienic design.
Why Choose Us
Reliable machinery, practical engineering support and flexible solutions for cap manufacturing and packaging automation.
Multi-Format Sourcing
Drawing from 110+ cap machine models, buyers can adapt proven cap-lining mechanisms for additional closure formats without starting from zero.
Global Service Coverage
After installation, 150+ customers worldwide are supported with technical assistance, spare parts and troubleshooting for automatic cap liner inserting equipment.
Tooling Cost Control
Operating 10 CNC machining centers in-house reduces dependence on outside tooling vendors and improves access to revisions and replacement parts.
