Product Application

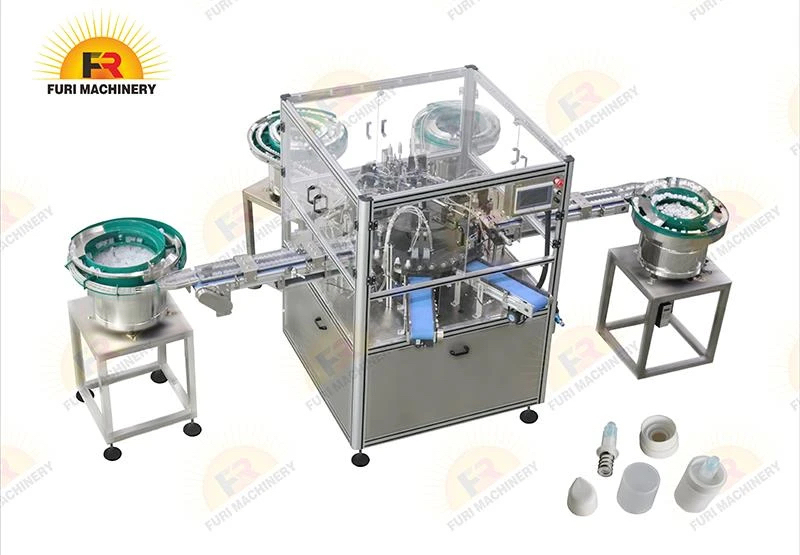

This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Key Technical Parameters
Specification of cap | Φ20-50 mm/Customized |
Machine capacity | 6000 PCS/HOUR |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 3.5 KW |
External dimension | 3500*1500*1200 mm³ |
G/N Weight | 1000 KGS |
Air pressure | 0.6-0.8 Mpa |
Features
FRTB-ZH Cap assembly machine is specially designed and manufacture Combined with advanced technology from the abroad same products, and Owns several patent technology. Control system adopts Siemens programmer, Liquid crystal display all kinds of state and parameter display clear. The equipment structure profile is reasonable, easy to operate. This machine has the following features:
1. Automatically sorting cap,capping,assembly,inspect,output,stop machine automatically when unqualified.

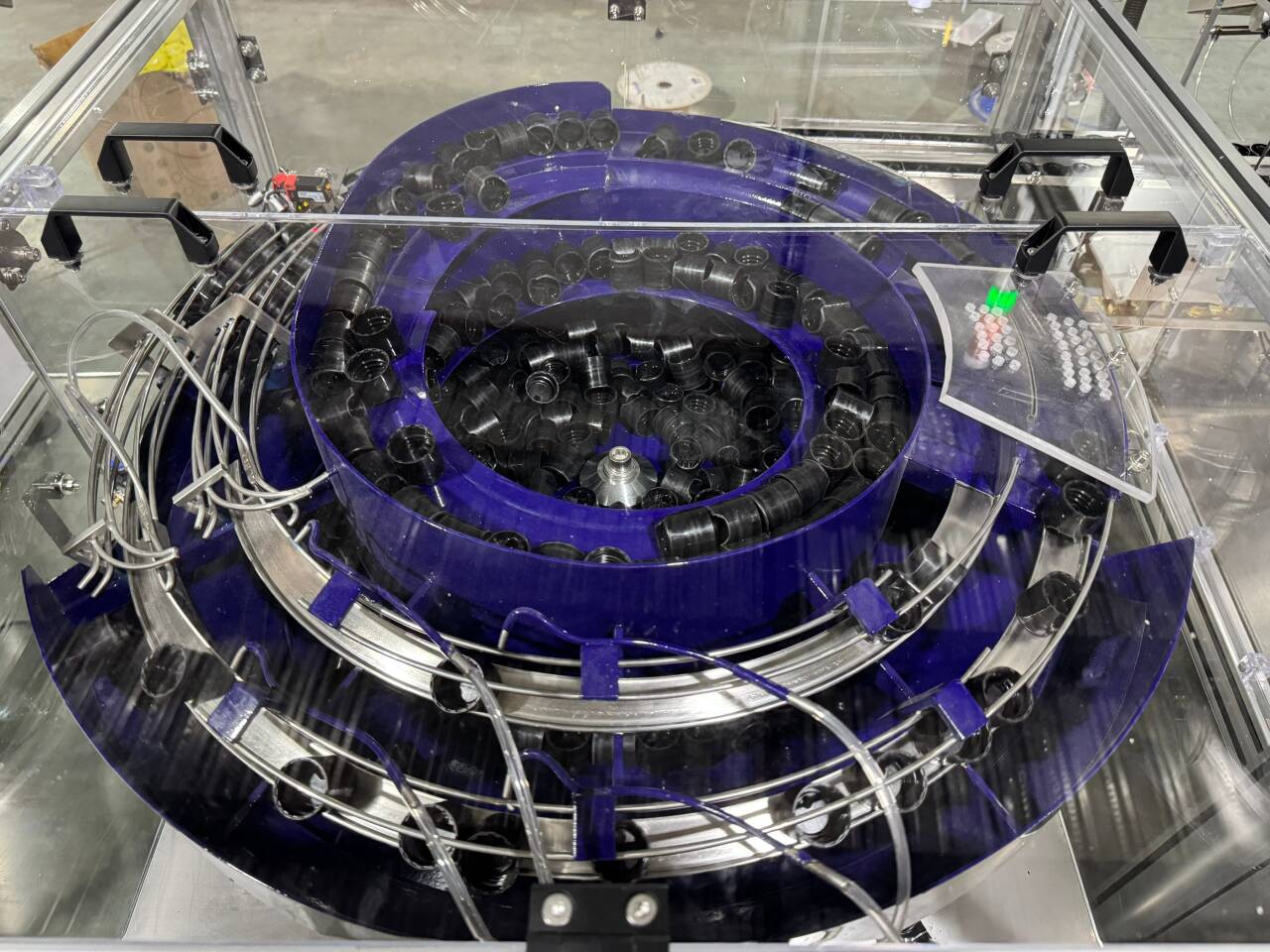

2. Cap feeding inspected by photoelectricity eye inspection, to make sure there will be enough cap,if not the machine will stop automatically.
3. The machine will stop automatically when unqualified finished cap come out.
4. Counting automatically,accurately reflect the production Easy to operate,simply maintenance,Effectively improve the productivity,Greatly reduces the labor intensity.
5. This machine is a fully automatic bottle cap assembly equipment designed and manufactured by our factory in strict accordance with the national "GMP" standards and process requirements. It is particularly suitable for use in situations where hygiene conditions are demanding, avoiding secondary pollution of material.
