Technical

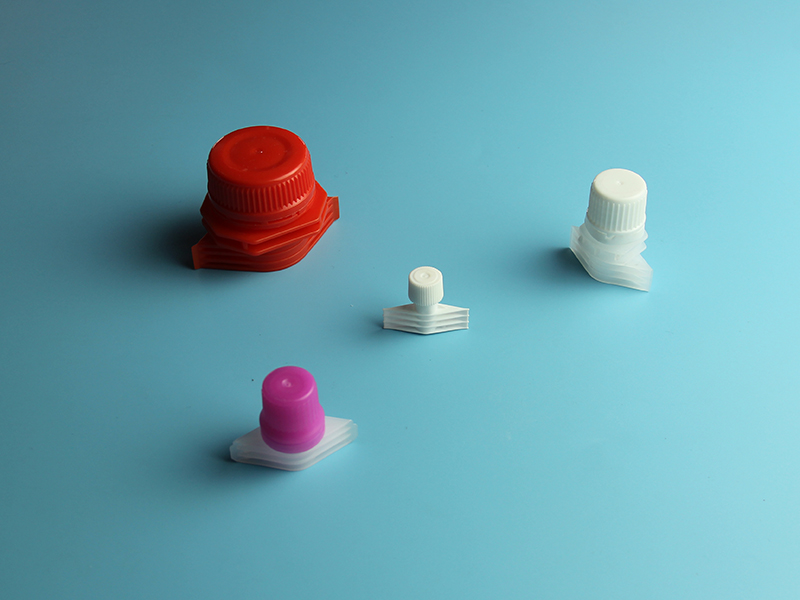

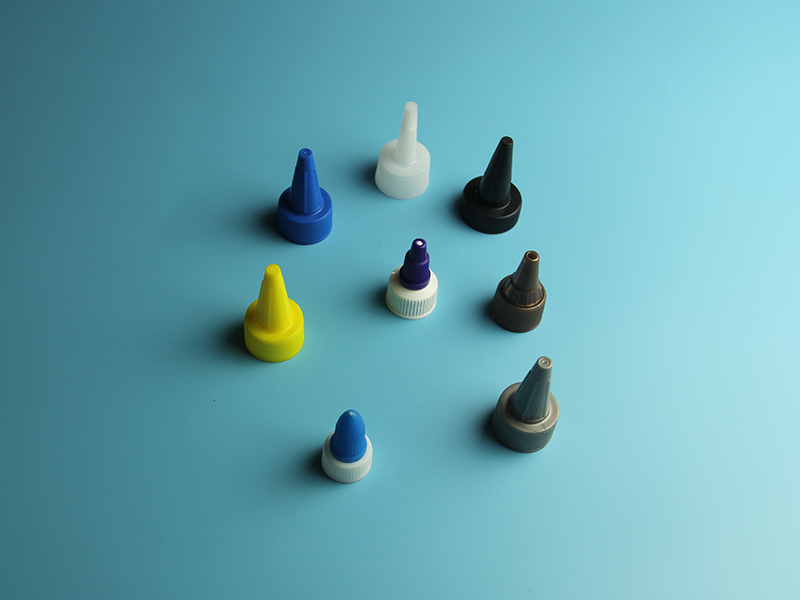

Specification of cap | Φ10-20mm |
Machine capacity | 80pcs/Min |
Power voltage | 220 V, single phase, 50-60Hz |
Total power | 2.2KW |
G/N Weight | 800KGS |
Air pressure | 0.6-0.8 Mpa |
Features
Application:As an ideal cap assembly machine, it is widely applied in cap factories, pharmaceutical factories, food products factories, daily chemical factories, packing factories, etc..
Structural Composition of the Machine:

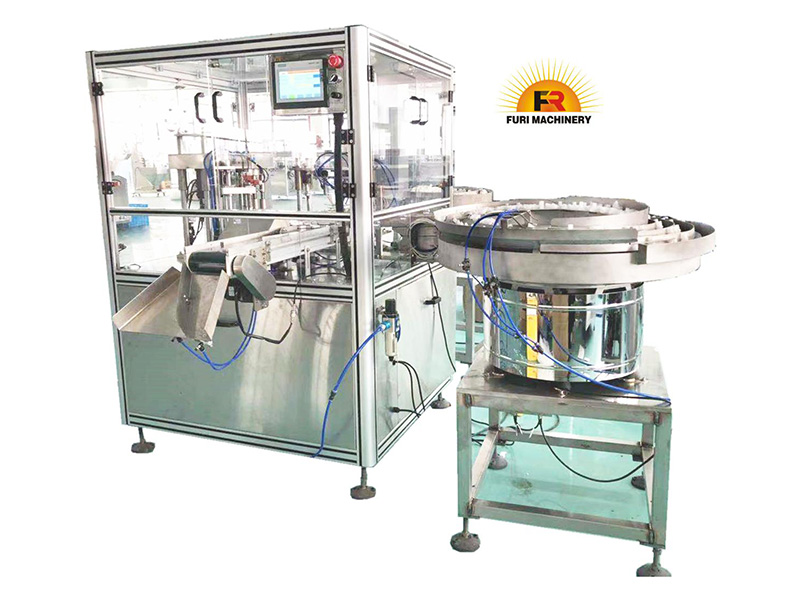

Vibrator bowl cap feeder----sorting messy caps in order and mouth upwards
Linear vibrator feeder---deliever caps to main machine in order and right orientation
Main machine---assembly the two parts, detect the final caps and reject the unqualified cap out from the good caps
Way out conveyor---counting final caps and discharge
The entire machine adopts Siemens PLC and touch screen/HMI control. The electrical control system adopts variable frequency control techniques, so it features random setting, wide applicable scope, simple operation, stable running, easy cleaning, convenient maintenance and strong durability.
The machine has the function of automatic detection of finished products, which guarantees the qualified rate of final caps.
The machine meets all state Environmental safety, Machinery safety, Electrical safety standards. There are safe guard top covers, over load protection, Emergency pressing functions installed to protect operators.
Vibrator Cap feeders and belts connect with PLC panel under European standard. All the detective sensor cable is express change connect,which are easy to change in the future.
End product unloading and counting the quantity. You can preset the quantity of one batch, when the counting number reaches the setting number, the machine can stop running automatically. The quantity may reset as well.
