Specification of cap | Φ20-50 mm |
Machine capacity | 80pcs/Min |
Power voltage | 220 V, single phase, 50-60Hz |
Total power | 2KW |
G/N Weight | 1000-1200KGS |
Air pressure | 0.6-0.8 Mpa |
Features

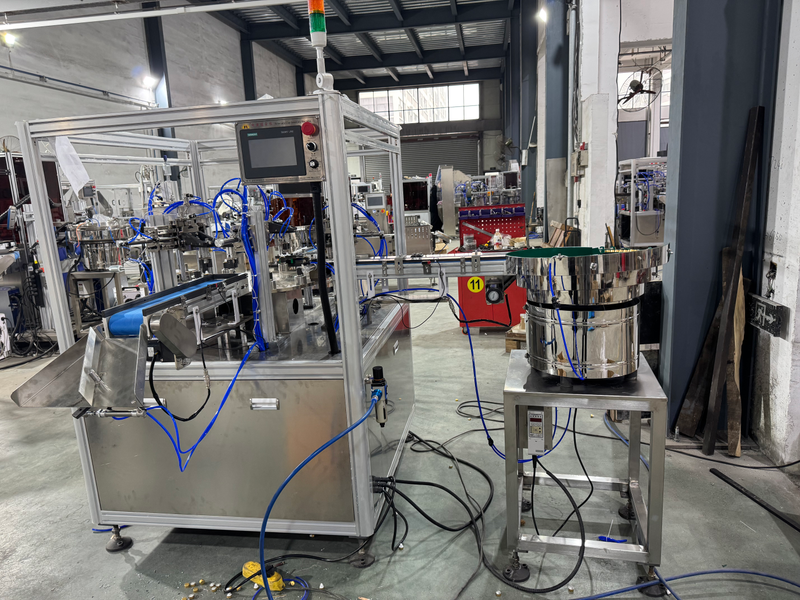

1. Cap assembly machine for combining 2-component cap, it is widely used in cap factories, packaging factories, food products factories and pharmaceutical factories
2. The entire machine adopts PLC control. The electrical control system adopts variable frequency control techniques, so it features random setting, wide applicable scope, simple operation, stable running, easy cleaning, convenient maintenance and strong durability.

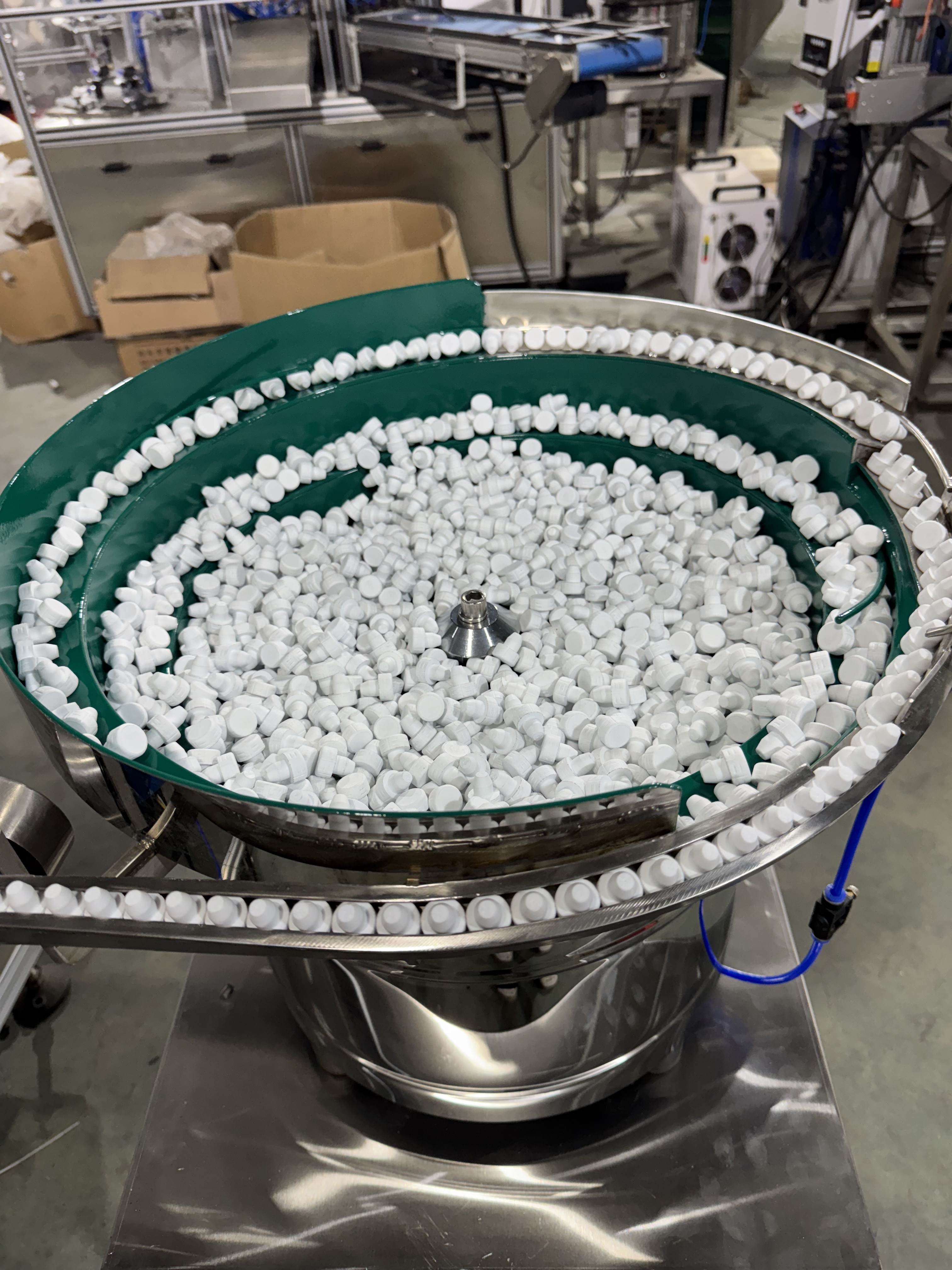

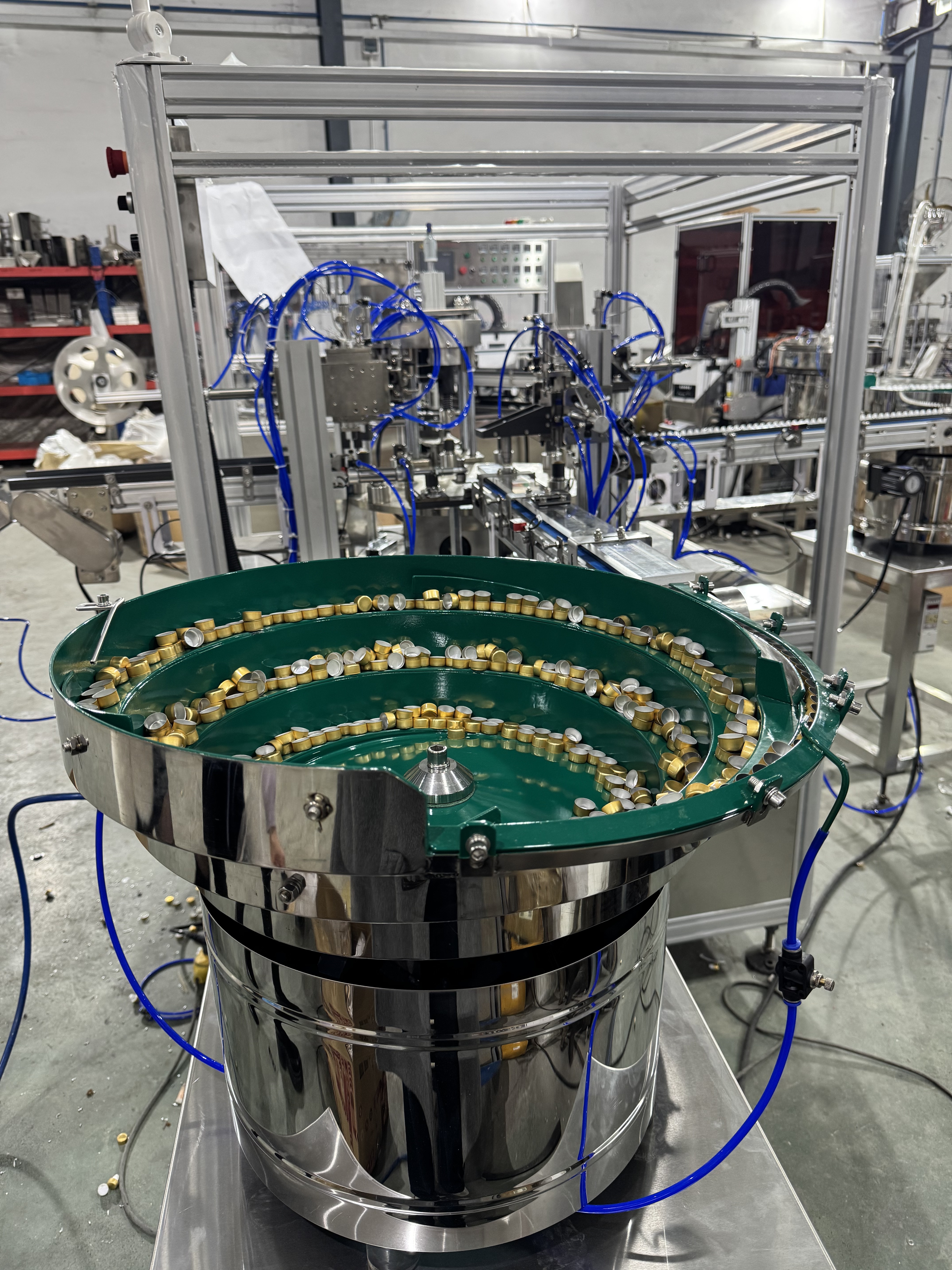

3. Adopts two sets of vibrator bowl feeder to sort messy caps in order.
4. Main machine drive system adopts mechanical transmission, which contributes to stable and reliable operation of the machine.
5. There is no damage to caps during the assembly processes in the machine, any wearing, scratches, pressing marks, greasy dirt or deformed caused by machine are deemed to be unqualified.
6. Unassembled cap part will be rejected automatically to guarantee the product quality.
7. End product unloading and counting the quantity. You can preset the quantity of one batch, when machine complete production, the machine can stop running automatically. Avoiding waste.
8. Control system uses touche screen, the flow and the fault automatic demonstration, the operation is easy.
9. There is a cap shortage stop function, when vibrator disc out of caps and no cap feed to main machine, the main machine will stop running automatically; and when cap refeed, the machine will restart automatically.
10. This machine is specially suitable for the occasion which has strict and severe sanitary requirements. It can avoid secondary pollution on the materials, and it can omit the sterilizing technics.
