Technical
Specification of cap | Φ20-50 mm |
Machine capacity | 70pcs/Min |
Power voltage | 220 V, single phase, 50-60Hz |
Total power | 3.5 KW |
G/N Weight | 600KGS |
Air pressure | 0.6-0.8 Mpa |
External Dimension | 3500mm*2800mm*1600mm |
Features

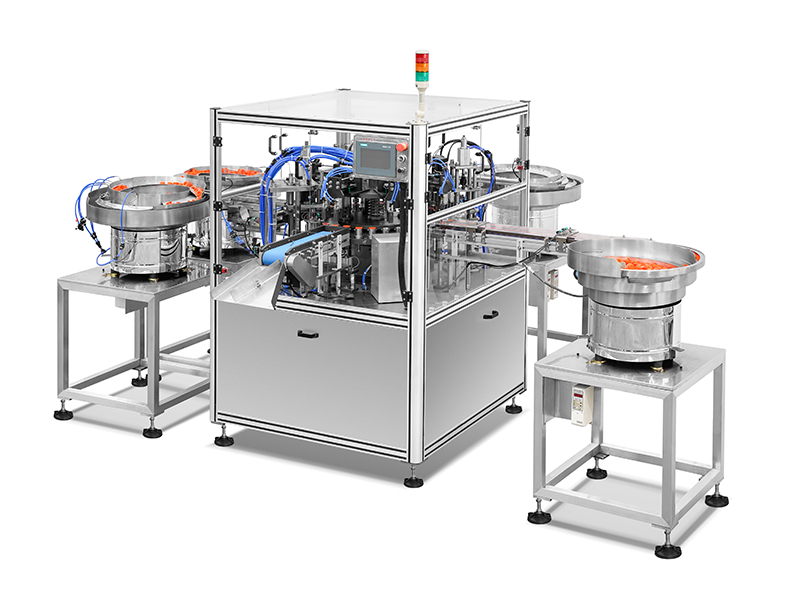

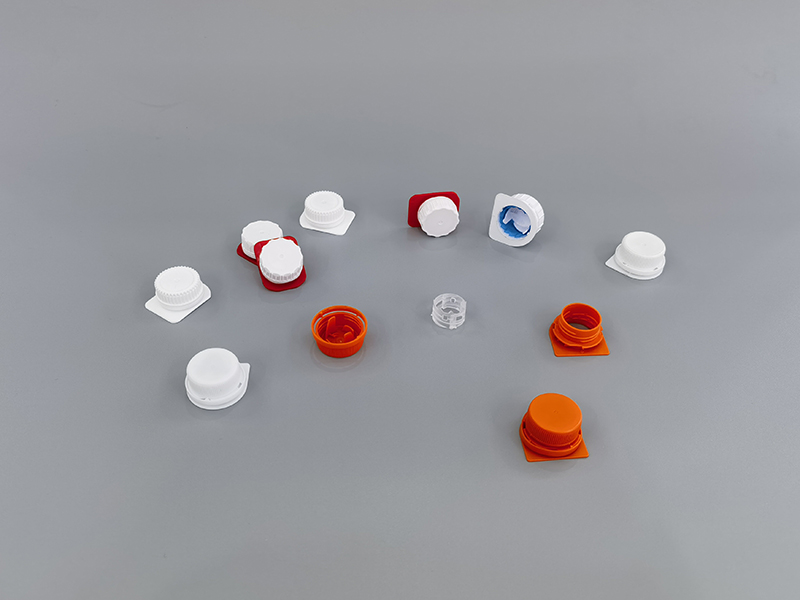

As an ideal cap assembly machine, it is for 3/4 Parts Tetra pak milk cap assembly. It is widely applied in cap factories, food products factories, packing factories.
The entire machine adopts Siemens PLC and touch screen/HMI control. The electrical control system adopts variable frequency control techniques, so it features random setting, wide applicable scope, simple operation, stable running, easy cleaning, convenient maintenance and strong durability.
The machine has the function of automatic detection of finished products, which guarantees the qualified rate of final products.
The machine meets all state Environmental safety, Machinery safety, Electrical safety standards. There are safe guard top covers, over load protection, Emergency pressing functions installed to protect operators.
Vibrator Cap feeders and belts connect with PLC panel under European standard. All the detective sensor cable is express change connect,which are easy to change in the future.
There is no damages to cap parts during the processes in the machine, any wearing, scratches, pressing marks, greasy dirt or deformed caused by machine are deemed to be unqualified.
End product unloading and counting the quantity. You can preset the quantity of one batch, when the counting number reaches the setting number, the machine can stop running automatically. The quantity may reset as well.
